Rotary Drum Thickener

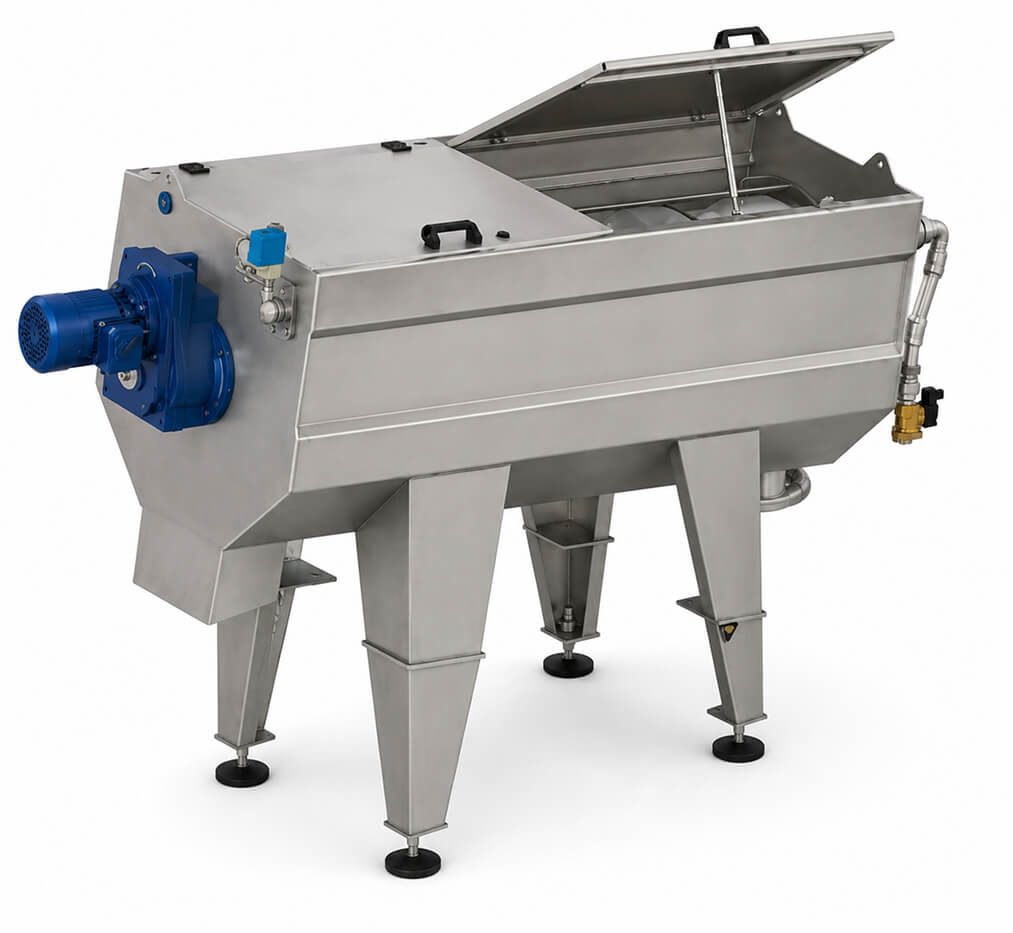

The Omega Rotary Drum Thickener (RDT) is designed for the continuous and automatic thickening of municipal and industrial sludge. Its compact design, low operating costs, and reliable performance make it an ideal solution for reducing sludge volume prior to dewatering, digestion, or disposal.
The RDT utilizes a slowly rotating drum combined with an internal spiral screw to efficiently separate water from sludge while maintaining simple operation and minimal maintenance requirements. Suitable for a wide range of sludge types, the Omega RDT can be installed as a standalone unit or integrated with downstream dewatering equipment.
Improve Process
- Efficient sludge thickening.
- Reduced sludge volume.
- Improved downstream dewatering performance.
Smooth Operation
- Continuous automatic operation.
- Adjustable drum speed.
- Simple process control.
Cost Savings
- Low energy consumption.
- Minimal maintenance requirements.
- Small installation footprint.
- About Product
Description
OPERATING MODE
Conditioned sludge enters the rotary drum through the inlet distribution system and flows into the rotating filtration drum. As the drum slowly rotates, free water passes through the filtration media while solids are retained inside the drum.
An internal spiral screw continuously transports the thickened sludge toward the discharge end of the drum. This design prevents short-circuiting of sludge flow and maximizes drainage efficiency throughout the thickening process.
Filtrate is collected within the integrated lower tank and discharged through a dedicated outlet. A built-in spray bar automatically cleans the filtration surface using pressurized wash water according to an adjustable timer sequence.
- Why It Wins
Features & Benefits
Continuous Thickening Process
The RDT provides fully automatic continuous sludge thickening, reducing sludge volume before dewatering, digestion, or disposal.
Internal Spiral Screw Design
The integrated screw conveyor slowly transports sludge through the drum, maximizing water removal while preventing direct sludge bypass from inlet to discharge.
Automatic Drum Cleaning
A pressure spray-bar washing system continuously cleans the filtration drum and maintains optimal performance with minimal operator intervention.
Compact Fully Enclosed Construction
The enclosed design minimizes odors and splashing while reducing footprint requirements and improving operator comfort.
Adjustable Operating Parameters
The drum rotation speed can be adjusted using a frequency converter, allowing optimization based on sludge characteristics and treatment requirements.
- Technical Guide
Design Guidelines
FLOW
From 4 GPM To 440 GPM
APPLICATION
Municipal & Industrial Sludge Thickening
DRUM DIAMETER
From 20 in To 32 in
DRUM LENGTH
From 59 in To 146 in
CONSTRUCTION
Stainless Steel
OPERATION
Continuous Automatic Process
CLEANING SYSTEM
Integrated Spray Bar
DRIVE SYSTEM
Variable Speed Drum Drive
INSTALLATION
Standalone, Silo, Skid, Trailer Or Dewatering System Integration
- Our Equipment
GBT+ BFP Combo Options
COMBO OMEGA CC
Belt width : from 0.60 to 1.20 m
Hydraulic flow : up to 15 m3/h
COMBO 100000 / SD OR MD
Belt width : from 1 to 2.50 m
Hydraulic flow : up to 40 m3/h
COMBO 1000 / MD, LD, THC
Belt width : from 1 to 2.50 m
Hydraulic flow : up to 150 m3/h
