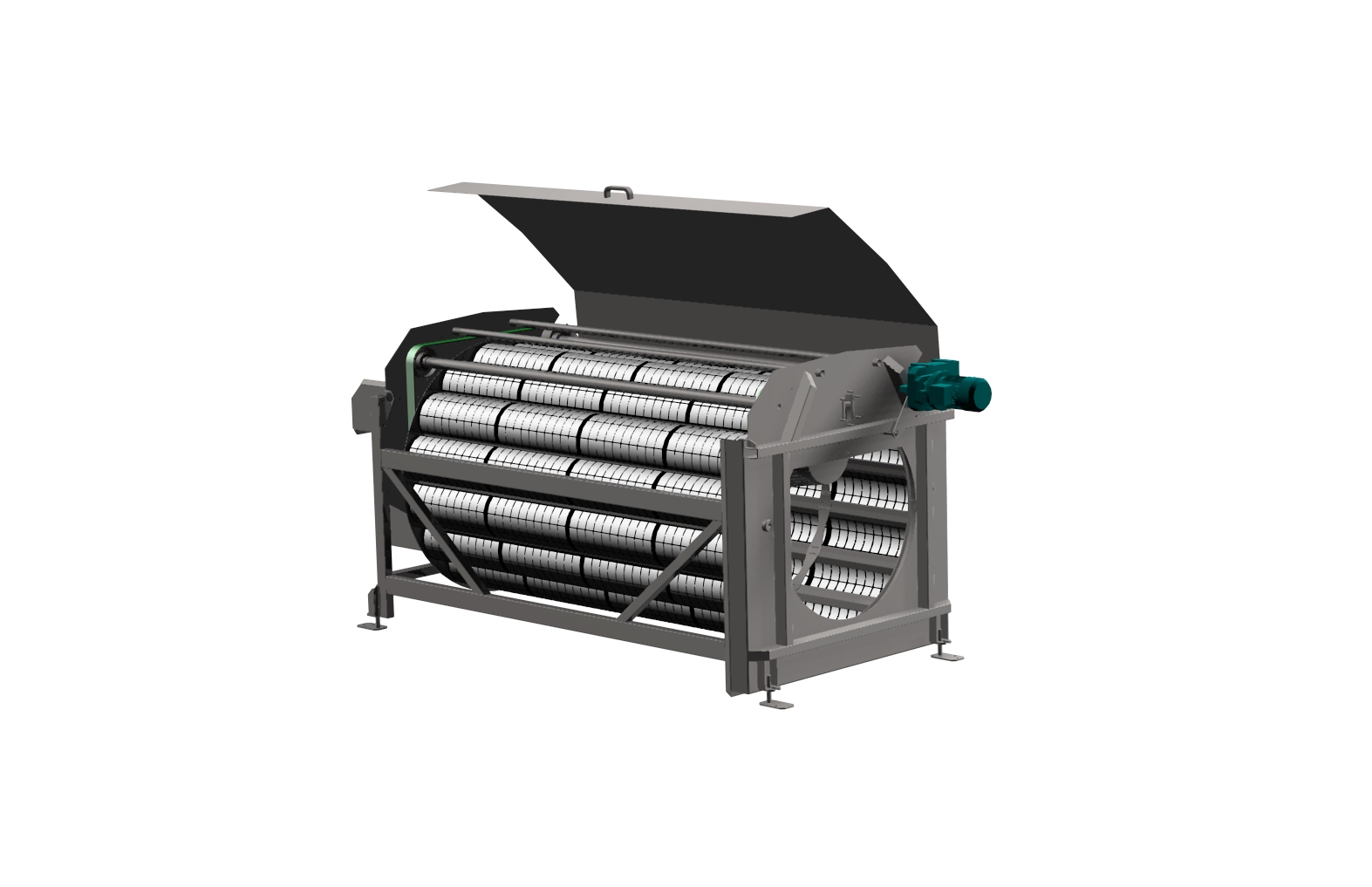

Drum Filter
The Microscreen Drum Filter is a high-performance tertiary filtration system designed to provide superior effluent quality while maintaining low operating costs and minimal maintenance requirements. Developed through decades of filtration experience, the unit is ideal for municipal and industrial applications requiring reliable fine screening and solids removal.

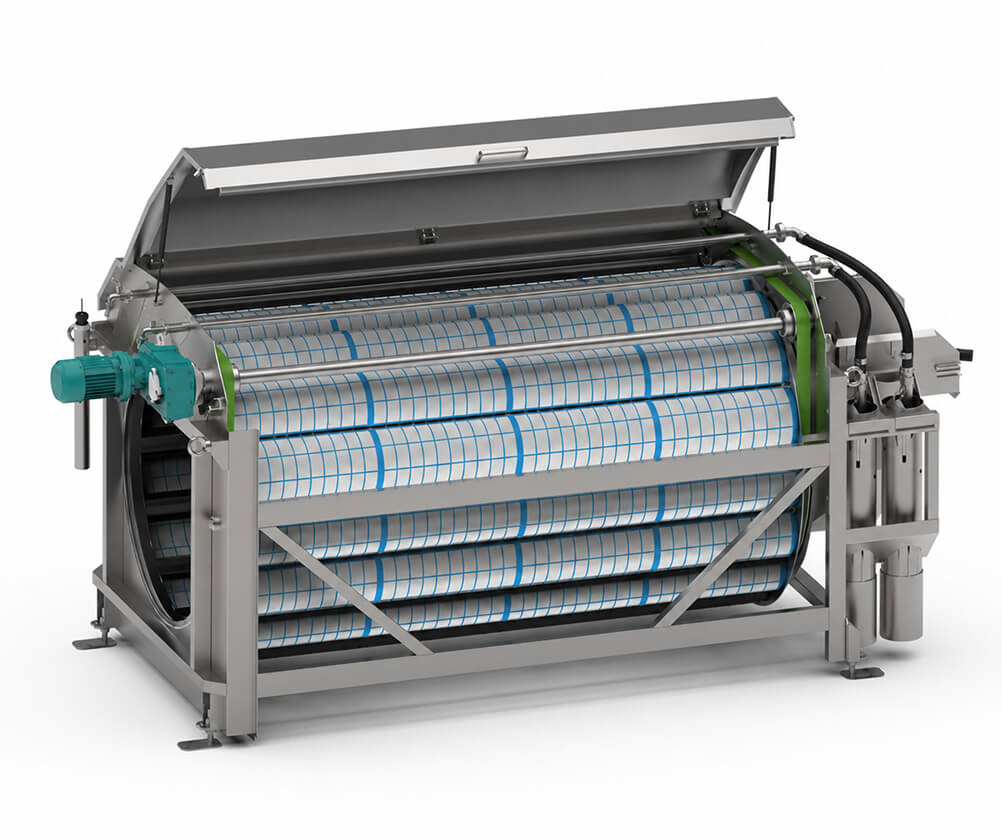

Available in both self-contained stainless steel tank and concrete channel configurations, the Drum Filter utilizes proven IN-OUT filtration technology combined with patented CLI-CLO filter cartridges for maximum efficiency and easy maintenance.
Improve Water Quality
- Superior effluent quality.
- Effective TSS removal.
- Phosphorus reduction down to 0.1 mg/L.
Easy Maintenance
- Quick cartridge replacement.
- No submerged bearings.
- Automatic cleaning cycle.
Lower Operating Costs
- Gravity flow operation.
- Low energy consumption.
- Reduced maintenance requirements.
- About Product
Description
OPERATING MODE
The Microscreen Drum Filter operates using a proven IN-OUT filtration process. Wastewater enters the central influent pipe and flows through individual filter cartridges. Suspended solids are retained on the inside of the filter media while clean water passes through the filtration cloth.
As solids accumulate, the water level inside the drum gradually rises. Once the preset level is reached, the drum automatically rotates and activates the backwash cycle. High-pressure spray nozzles remove collected solids and discharge them into the sludge trough.
When the water level returns to normal, rotation stops and filtration resumes at full capacity. The process operates continuously without interruption.
- Why It Wins
Features & Benefits
Fine Filtration Performance
Available with filtration cloth openings starting at 10 microns for superior removal of suspended solids, algae, and fine particulate matter.
Patented CLI-CLO Cartridges
The exclusive CLI-CLO cartridge system allows rapid replacement of filter media without screws or complicated fasteners. Simply click the cartridge into position, significantly reducing maintenance time and costs.
Kevlar Belt Drum Support
The drum is suspended on heavy-duty Kevlar belts, providing smooth operation, increased reliability, and long service life.
No Submerged Bearings
The design eliminates underwater bearings, reducing maintenance requirements and preventing contamination risks.
Advanced Backwash System
Specially designed high-pressure spray nozzles provide efficient cleaning while minimizing water consumption and preventing clogging.
- Technical Guide
Design Guidelines
FLOW
Up To 4.8 MGD
FILTRATION SIZE
From 10 Microns
HEADLOSS
4 to 10 Inches
FILTER MEDIA
Patented CLI-CLO Cartridges
MATERIAL
304, 316L, 316Ti Or Duplex Stainless Steel
DRUM SUPPORT
Kevlar Belt System
CONFIGURATION

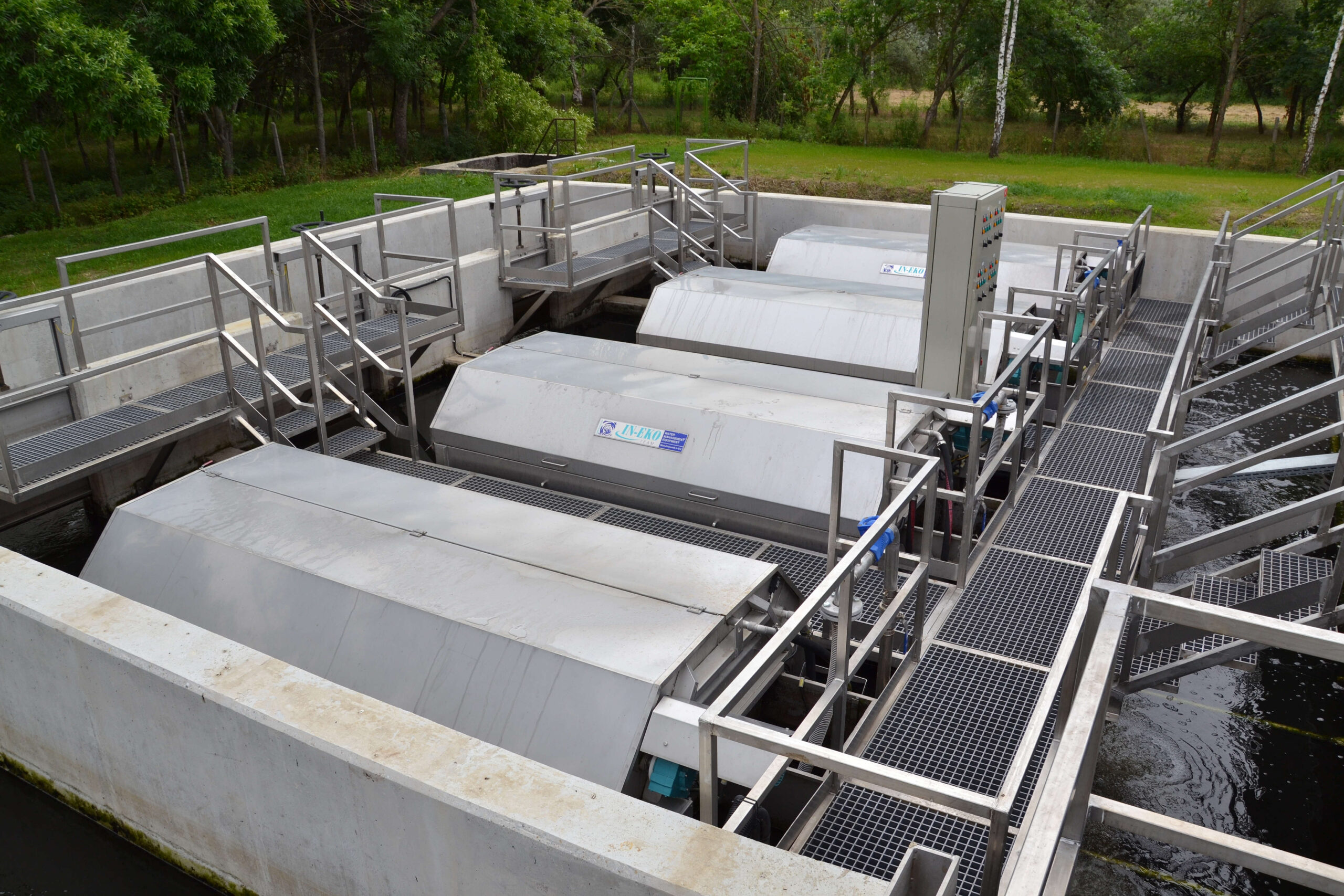

Concrete Channel Or Self-Contained Tank
CONTROL
Fully Automatic
OPERATION
Gravity Flow
